pH electrode with Teflon junction, double reference, 3 bar m | S

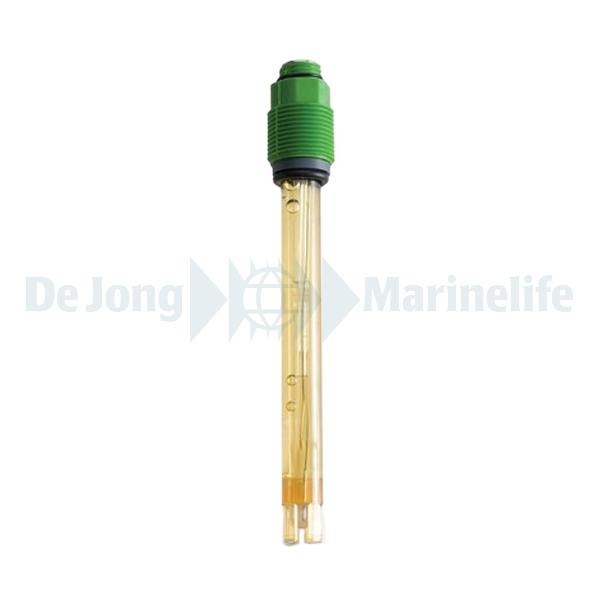

The combination PEI-body pH electrode is designed for industrial applications with features such as a PTFE junction, high temperature glass, and T-type connection.
With its durable design, you can count on this electrode to stand up to your process environment.

pH electrode with renewable cloth junction
High temperature glass can stand up to the effects of elevated temperatures leading to longer probe life
Built for everyday, demanding use in industrial applications

Key features – HI-1211T

Combination electrode – Single combined electrode that has both sensing and reference components for added convenience.
High temperature glass formulation – High temperature glass can stand up to the effects of elevated temperatures leading to longer probe life.
PTFE junction – The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
T-type connector – Designed by Hanna to take advantage of both PG 13.5 thread and screw cap. The PG 13.5 thread ensures proper in-line installation while the screw cap allows for maximum versatility making it possible to connect a cable of different lengths.
PEI body – PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.
Double junction technology with gel polymer filling – Ensure long electrode life and reliability in harsh environments.

Junction type and flow rate

Double, PTFE

Electrolyte

Polymer

Body material

PEI

Temperature

-5 to 80°C

Max Pressure

3 bar (43.5 psi)

Connector

T-type

Overall length

140mm

Amplifier

No

Probe mounting

PG 13.5 thread
