The new and improved HI-99301. With it’s larger user friendly LCD, tutorial messages for calibration and setup, missing probe indicator, newer rugged ergonomic casing, faster and easier battery replacement and probe situated on the bottom of the instrument for ease ot use, the updated model is much more effiecent.

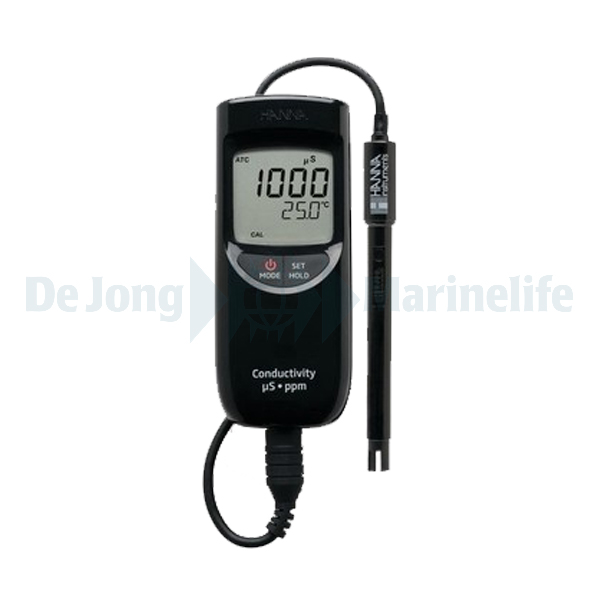

The HI-99301 is a portable, EC/TDS/temperature meter that measures high range conductivity in mS/cm and TDS in ppt. Both instruments are housed in a case rated for IP67 conditions.
This instrument offers single point, automatic calibration with automatically temperature compensated measurements. The compensation coefficient and EC/TDS conversion factor are user-selectable from 0.45 to 1.00 and temperature coefficient is selectable from 0.0 to 2.4%/°C.
This meter easily fits in the palm of your hand and the bottom probe connection ensures the electrode cable doesn’t get in your way. The large, multi-level LCD displays the primary reading, temperature and calibration guides simultaneously. Symbols and messages on the LCD indicate meter status and guides users through operations.
At start-up, the meter shows the remaining battery percentage and when a low battery condition is detected, a battery symbol appears on the LCD to advise the user that only a few hours of working time is left.
The HI-763063 EC/TDS/temperature probe resists clogging and is easy to clean.
Ideal for: Boiler Water & Waste Water
Main features

Simultaneous EC/TDS and temperature measurements on a large LCD display
Selectable temperature unit
HI-763063 dedicated EC/TDS temperature probe
Probe quick connect system
Battery life indication and low battery detection
Auto-off function
Keystroke confirmation tone
Waterproof casing IP67

Each meter is supplied complete with:

HI-763063 pH/EC/TDS probe with built-in temperature sensor, DIN connector and 1m cable
HI-70030 – 12880 µS/cm and HI-70038 6.44 ppt 1 sachet each
100mL beaker
Alkaline batteries: 1.5V AAA x 3
Rugged carrying case
Calibration certificate of meter
Calibration certificate of probe
Instruction manual

Range



 EC

0 to 20.00 mS/cm (displays mS)

 TDS

0.00 to 10.00ppt

 Temp

-5.0 to 105.0°C

Resolution



 EC

0.01 mS/cm

 TDS

0.01 ppt (g/L)

 Temp

0.1°C

Accuracy @ 20°C

±2% F.S. (EC/TDS); ±0.5°C temp

Temperature Compensation

Automatic, with β selectable from 0.0 to 2.4%/°C with 0.1 increments

EC/TDS Calibration

Automatic, one-point at 12.88mS/cm or 6.44 ppt (CONV=0.5) or 9.02 ppt (CONV=0.7)

TDS Conversion factor

Selectable from 0.45 to 1.00 with 0.01 increments

Probe (included)

HI-763063 EC/TDS/Temperature sensor, DIN connector and 1m cable

Battery type/life

1.5V AAA x 3 approx 500 hours of continuous use

Auto off

User selectable after 8 mins, 60 mins or disabled

Environment

0 to 50°C RH max 100%

Meter Dimensions

154 x 63 x 30mm

Weight (with batteries)

196g

Casing ingress protection rating

IP67
